Finish

Battery

HALO - Battery Life
Operating time (constant output): 17-60 hours

Size and Weight

In the box

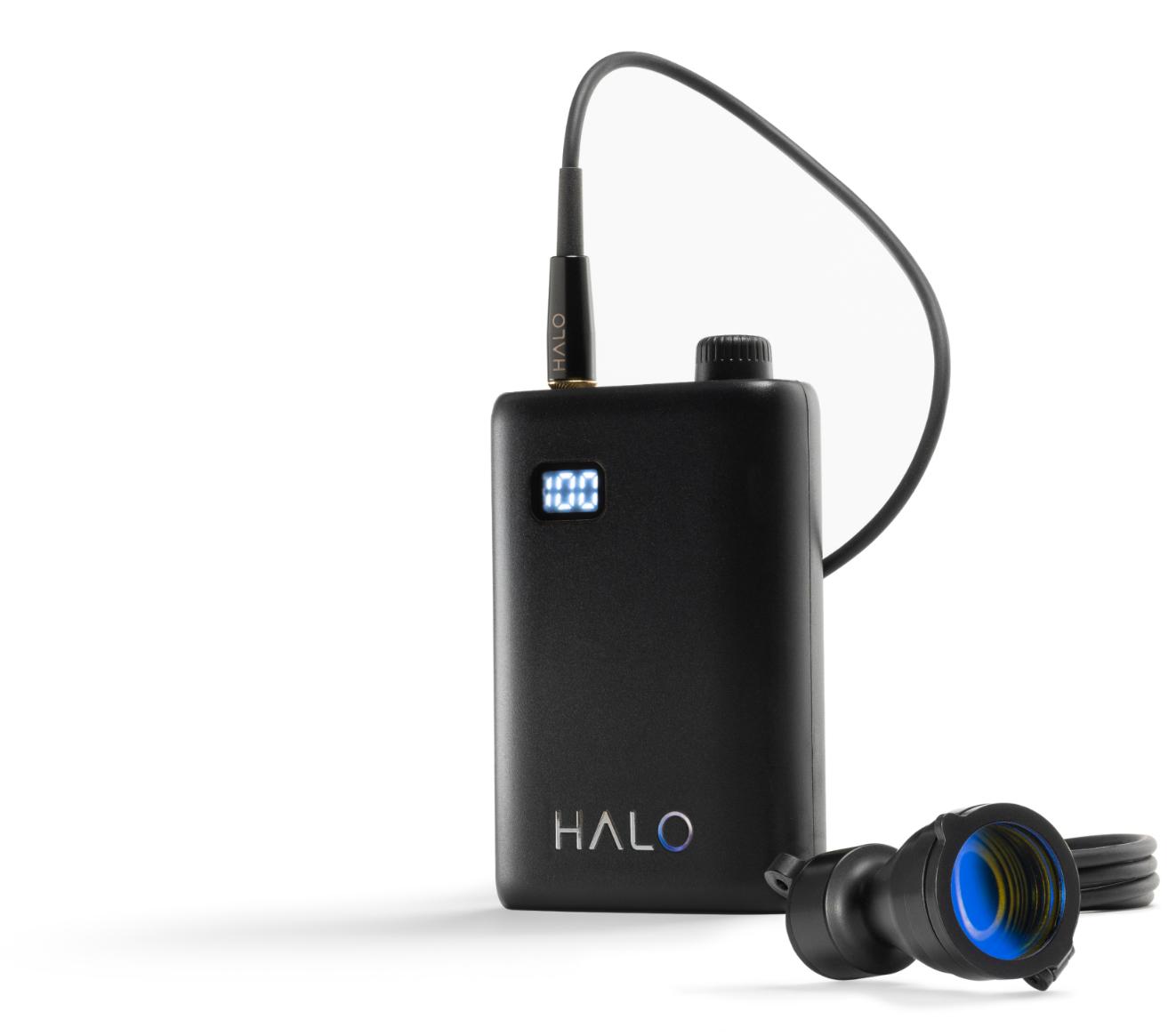

LED with integrated wire
Dichroic composite filter

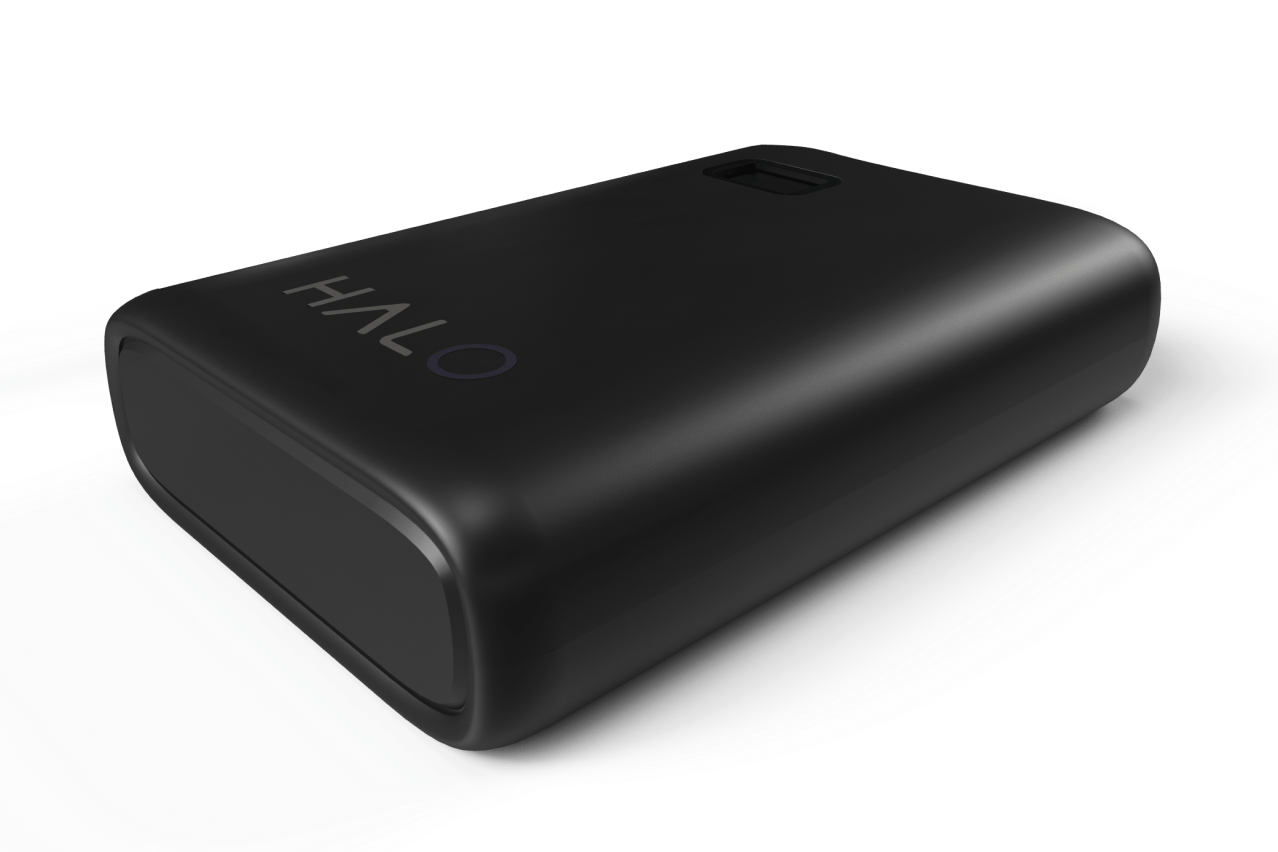

Battery control unit
Power adapter (country specific)
Headlight bracket (frame specific)
Halo Screw driver
Accessory bag
Spare O-ring pack
Head strap
Instruction manual

Technical

Model HL-BD07
SKU 5060678490423
Spot size 10cm diameter @ 40cm working distance
Spot size 7cm diameter @ 40cm working distance
Beam colour temperature 5700K
Beam intensity 25 – 70 lumens
Battery weight c200g
LED weight (inc. cable + connector) c36g
Adverse reactions None known
Operating power DC3.7V 450mAh @ 37Wh
Charger input AC100 - 240 volts, 50-60 Hz, max. 0.8A
Charger output 5.0V 2.4A 12W
Operating time (constant output) 17 – 60 hours
Battery charge cycle count >700
LED life cycle >50,000 hours

Storage & Shipping Conditions

Storage temperature: 0⁰C - 40⁰C
Relative Humidity 30-75%

Environmental Operating Conditions

Operating Temperature: 0⁰ - 30⁰C
Charging Temperature 10⁰ - 30⁰C
Relative humidity: 30 - 75%
Atmospheric pressure: 70.0 kPa to 106.0 kPa

Applicable standards:

EN 60601-1:2006
EN 60601-1-2:2015
IEC 60601-1-6:2010/AMD1:2013
IEC 60601-1-2:2014ICES-003 (issue 6)
IEC 62471:2006 (risk group 2)
Meets requirements of the EU-MDR

FAQ's

What is included within the Halo tech spec?

The Halo light is powered by a high-quality LED bulb, providing exceptional brightness and clarity. The Halo headlight is designed to be compatible with a range of loupes and provides superior illumination for dental procedures. With a range of brightness settings, users can customise the level of illumination to suit their needs. The lightweight and ergonomic design of the Halo headlight ensures that it can be worn comfortably for extended periods without causing fatigue or discomfort. With its advanced LED technology and versatile compatibility, the Halo headlight system is a top choice for dental professionals seeking a high-quality dental headlight that provides superior illumination and comfort. The halo also features a dichroic composite filter which blocks blue light when working with composite. Read our technical specification to find out more.
